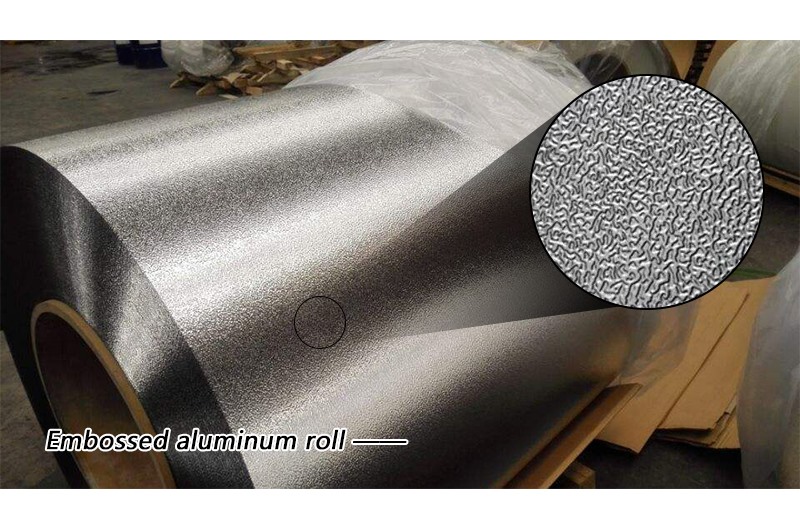

Embossed aluminum roll

Embossed aluminum roll factory. According to the thickness of the Embossed aluminum roll, signi makes the pattern appropriately three-dimensional when embossing, and ensures that the performance is not damaged. The orange peel pattern is extruded on the basis of light aluminum. The often processed orange pattern has classic orange peel and variant orange peel patterns. Classic orange peel is a commonly used pattern for export, and variant orange peel is a commonly used pattern in China.



The thickness of Embossed aluminum roll processed by SIGNI Aluminum is 0.17-1.5mm. The width can be processed to 1550mm, and the whole plate thickness tolerance of the orange peel embossed aluminum coil produced by SIGNI is very small. The tolerance of the middle and side parts is 0.01mm, which is the tolerance of the same board. The control range of the width tolerance of Signi Aluminum is 1mm, the thick processing capacity can be 2.0mm, and the coil can be 1.5mm. Commonly used materials are 1060, 1100 and 3003 and 5005, 5053

Embossed aluminum roll packaging: For coil packaging: First, the inner hole is 505mm305mm, which is commonly used. The weight of a single roll is about 2.5 tons. It can also be made into rolls of different lengths and weights, which is convenient for customers to use. Fumigation-free packaging is adopted for export, which is suitable for export. The inner packaging is made of plastic cloth + kraft paper, and the outer layer is protected by cardboard.

Embossed aluminum roll is widely used in power insulation, pipe insulation jacketing, building insulation, engineering insulation electronics, etc.
